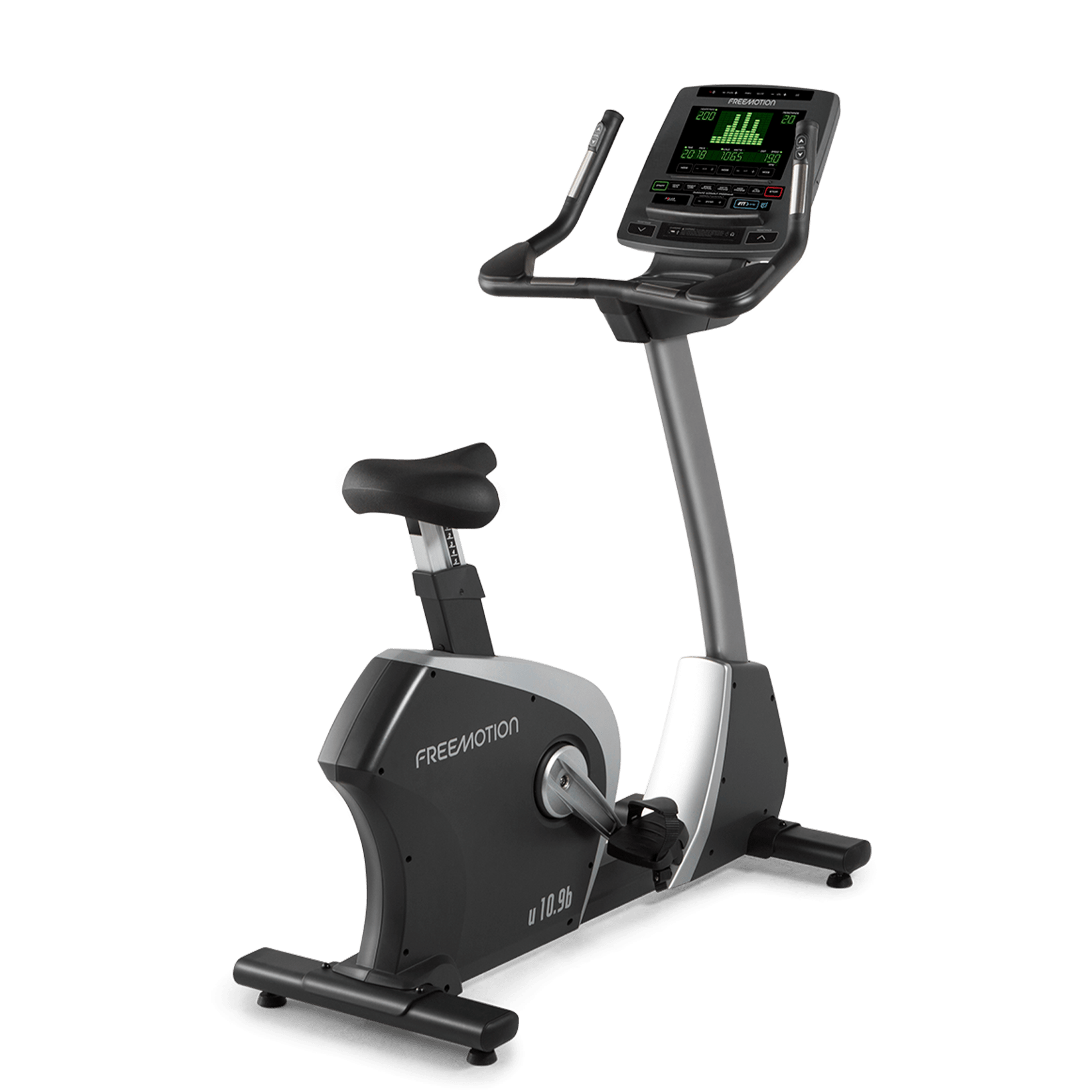

FreeMotion u10.9b Upright Bike

Name: Echelon Fitness ROW-7s Commercial Connected Rower
Brand: Echelon Fitness

Product variants

The u10.9b Upright Bike matches your mood. With an intuitive console, the bike is easy to use for those times you want to get on and go. However, when you're looking for adventure, sync your smart device to follow a workout filmed in Europe, Africa or Hawaii -- the bike will recreate the actual route with breath-taking video and automatic resistance that matches the terrain.

Overview
Specifications
Warranty

QUICKLIFT™ OVERMOLDED SEAT
For easy, secure seat adjustments, simply lift the lever and quickly slide the seat to the desired position and it locks in place.

3-PIECE CRANK
By separating the spindle from the crank, Freemotion has created a stronger, more durable design and realistic cycling experience. Enjoy a smoother, more comfortable ride.

LARGE, SELF-LEVELING PEDALS
These articulating pedals keep feet level, reducing ankle rotation. Adjust the foot straps for a custom fit and keep feet secure.

BUILT-IN WORKOUTS
Choose between 8 Weight Loss, 8 Speed Interval, 3 Race Training, 3 Hill Climb and Heart Rate workouts with the touch of a button.

24 LEVELS OF DIGITAL RESISTANCE
To burn more calories, crank up the intensity. To improve muscle tone, choose one of the 24 resistance levels.

EKG GRIP PULSE
Keep an eye on heart rate levels with a built-in EKG monitor.

PERSONAL ENTERTAINMENT
Entertainment capabilities make the workout experience even better. Add an optional 15.6 in (39 cm) Personal HDTV Screen.
CONSOLE FEATURES
- Display Type Simplified User Interface
- Resolution N/A
- Controls On-handle Digital Controls
- Workout Metrics Speed, Resistance, RPM, Distance, Calories, Time, Heart Rate, Watts and Pace
- Number of Programs 24
- Preset Programs 8 Weight Loss, 8 Speed Interval, 3 Race Training, 3 Hill Climb, Heart Rate, Watt Training
- Google Maps N/A
- Console Language(s) EN, ES, DE, IT, PT, CH, NL, FR
- Featured Languages EN, also DE, ES, FR, IT, PT, RU, ZH
- Additional Options N/A
ENTERTAINMENT
- TV Tuner N/A
- Closed Captioning N/A
- Optional Upgrades Personal HDTV (15.6 in / 39.6 cm) with On-Console Controls (FMTV82518-16 / FMTV82518-16INT)
  900/800 MHz TV receiver (MYE900RCVR)
CONNECTIVITY
- Recommended Internet Connection N/A
- Ethernet Requirements N/A
- WiFi Connection 2.4 / 5 GHz
- WiFi Requirements 10 Mpbs per unit download, 500 Kpbs per unit upload
- Video Connections N/A
- Audio Connections 3.5 mm Audio Out
- CSAFE Enabled
- ECOFIT N/A
PRODUCT FEATURES
- Crank & Axle 3-Piece Crank
- Drive Belt Quiet Belt Drive System, Hutchinson
- Pedals Oversized, Self-leveling Pedals
- Gear Ratio N/A
- Resistance System 400 Watt Self-Generator Resistance System
- Heart Rate Monitoring EKG Grip Pulse/POLAR Receiver Included
- Workout Fan N/A
- Accessory Charging N/A
- Accessory Holder(s) Water Bottle Holder
- Seat Overmolded Quick Adjust Seat
- Accessibility Highly-Accessible Step-Thru™ Design
- Positioning Large Adjustable Leveling Feet
- Transport Wheels 2 in / 5 cm plastic transport wheels
- Color Options N/A (Flat Black is standard color)
- Unit Options Metric or Imperial
- Power Options 110-120 VAC, 2 Amp
  220-240 VAC, 1 Amp
PRODUCT SPECIFICATIONS
- Maximum User Weight 400 lb / 182 kg
- Resistance Levels 1-24 Levels of Resistance
DIMENSIONS & WEIGHT

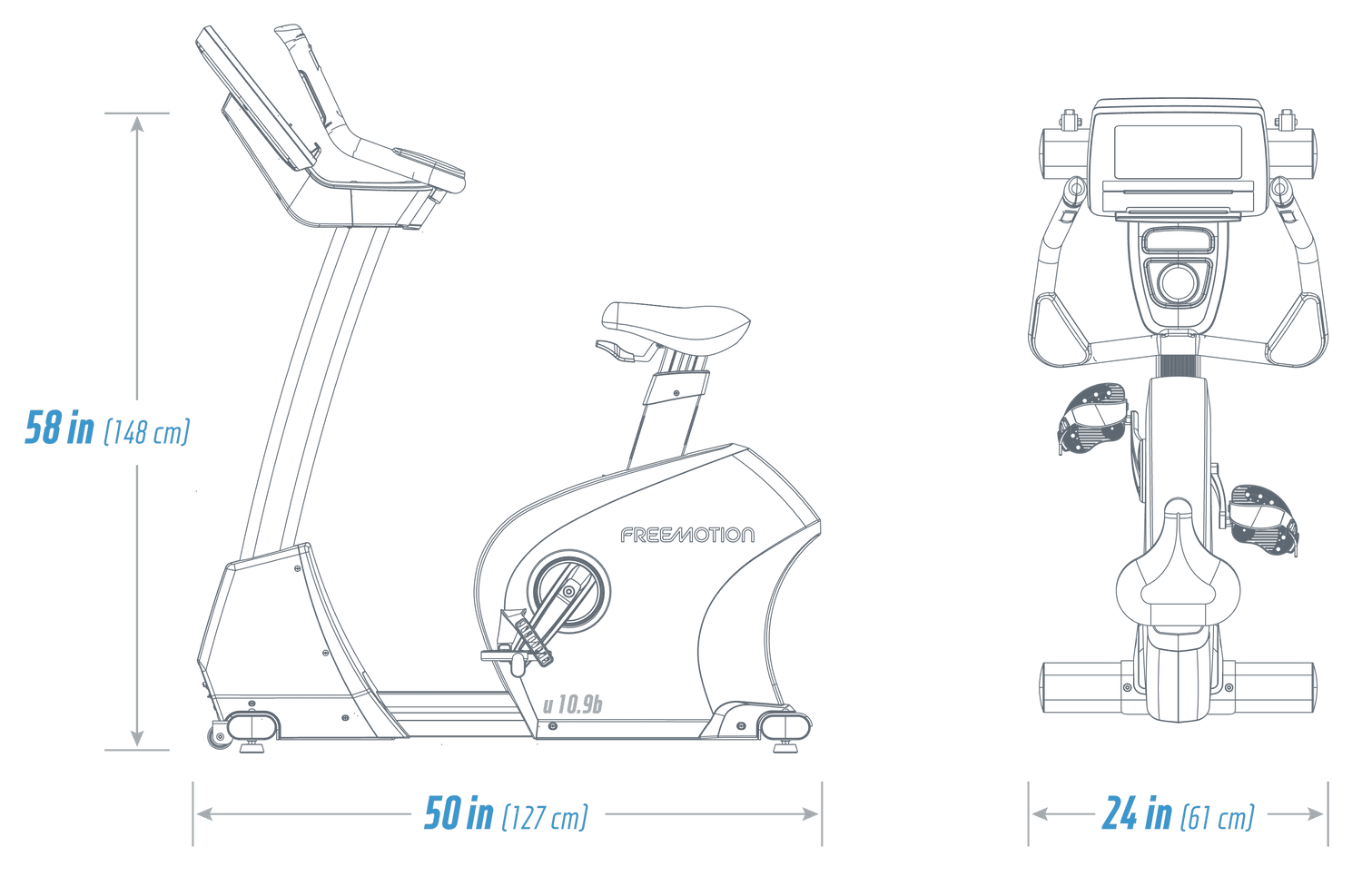

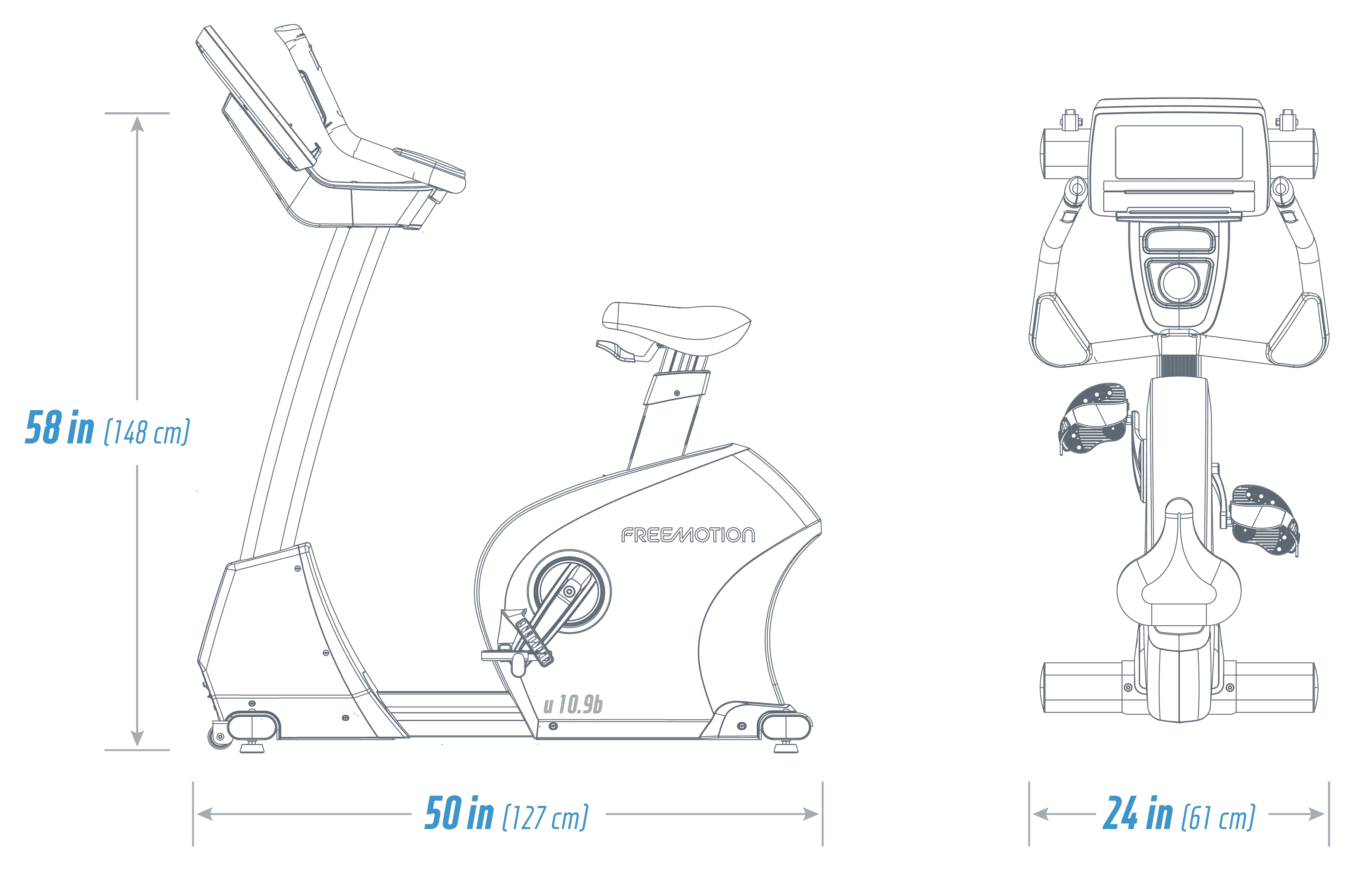

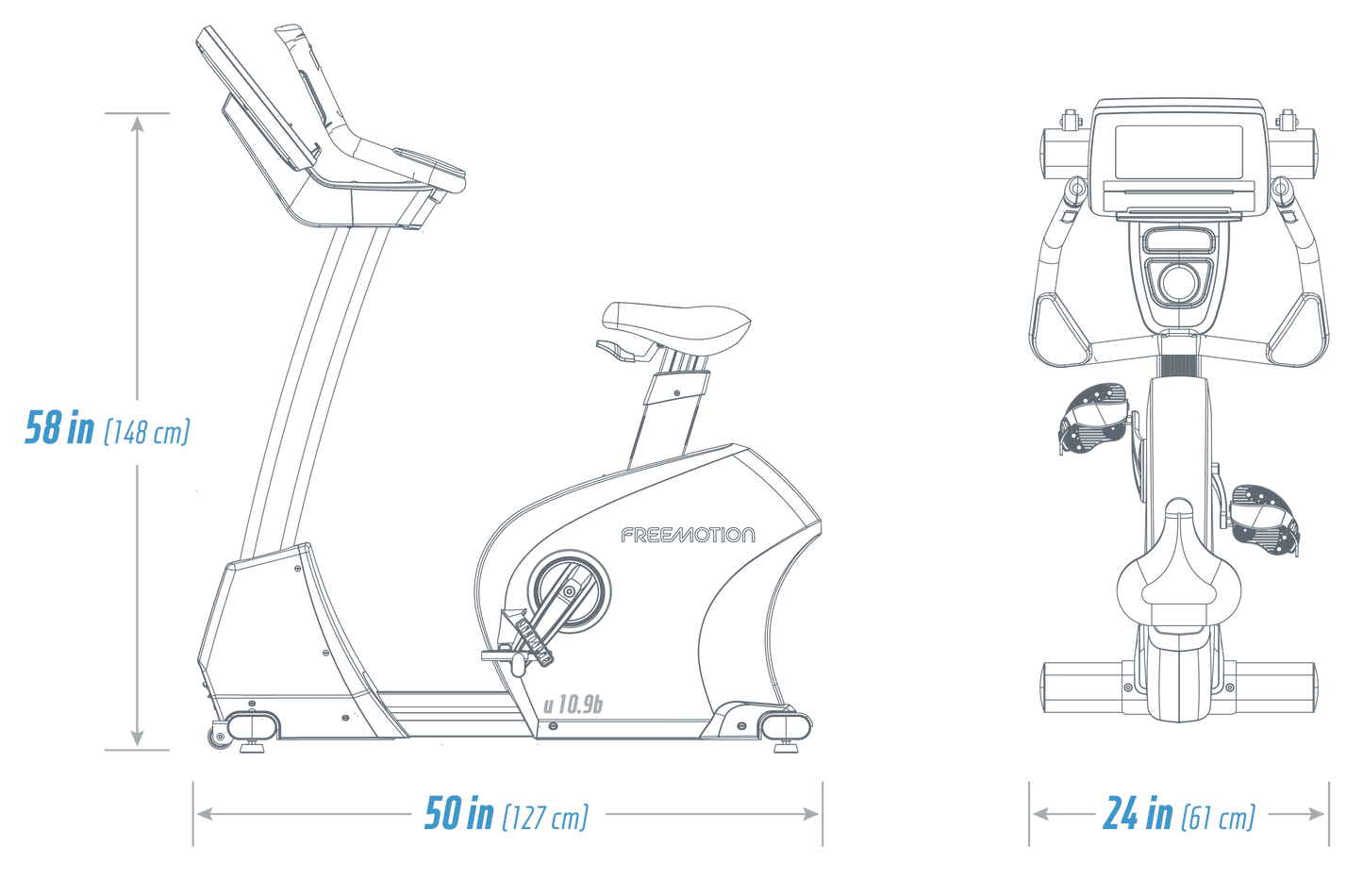

- Product Dimensions L x W x H 50 x 24 x 58 in / 127 x 61 x 148 cm
- Product Weight 167.6 lb / 76.2 kg
- Shipping Dimensions L x W x H 51.3 x 14.7 x 32.4 in /130.3 x 37.3 x 82.2 cm
- Shipping Weight 183 lb / 83.2 kg
POWER REQUIREMENTS
- U.S. & Canada 110-120 VAC, 2 Amp
- International 220-240 VAC, 1 Amp
CERTIFICATIONS
- cTUVus, FCC/IC, BQB
HIGH-USAGE WARRANTY (US & CANADA)
- Frame: 7 Years
- Parts: 2 Years
- Console: 2 Years
- Labor: 1 Year
- Cosmetic & Wear Items: 6 Months
LOW-USAGE WARRANTY (US & CANADA)
- Frame: 7 Years
- Parts: 3 Years
- Console: 3 Years
- Labor: 3 Years
- Cosmetic & Wear Items: 6 Months
